Open Frame Straight and Radius Conveyor

Model OFSR-2004

An open frame plastic chain conveyor designed to be easy to clean as well as turn corners. Belt materials are chosen based on the needs of each application

Typically belt widths are 12 inches and above.

  • USDA and AMI approved for use within a Meat or Poultry Plant
  • Designed using the AMI Principles for Ready to Eat foods processing equipment
  • 11 gauge, 1-1/2" or 1" square tube stainless steel square tube
  • 1-1/4" schedule 10 pipe available
  • UHMW drive sprockets
  • Removable UHMW wear strip to simplify cleaning.
  • FDA approved belting materials
  • Stainless steel gear box
  • Stainless steel induction motor
  • Side rails available
    • 1/2" diameter round bar for box applications
    • 1/4 x 1 flat bar for product applications

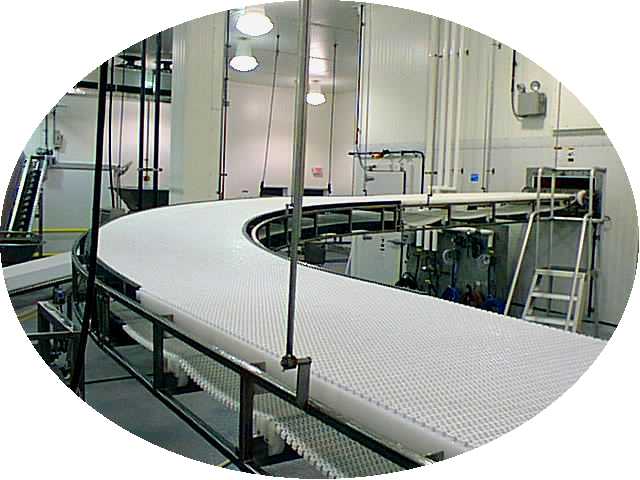

Infeed to Freezer

36" wide radius conveyor
