Straight Running Endless Belt Conveyor

Model Number EBC-96

  • Endless Belt
  • USDA approved for use within a Meat and Poultry Plant
  • FDA approved materials
  • Belt options
    • Two or thee Ply belt with sealed or welded edges
    • Volta style mono-polymer belting
    • MOL style mono-polymer tooth driven belting
  • V-guide available for belt tracking
  • Stainless Steel Construction
  • 1/2" diameter round bar guide and wear strips
  • Troughing available
  • Drive Pulleys
    • Stainless Steel Hollow Roller
      • Dye filling available
      • PVC Pressed roller on a stainless steel shaft
  • Stainless Steel bearings
  • Retractable take-ups
    • Pivoting lock system
    • Spring loaded take ups available
  • Belt lifting system
  • All bearings space 1/4" from mounting surface


.

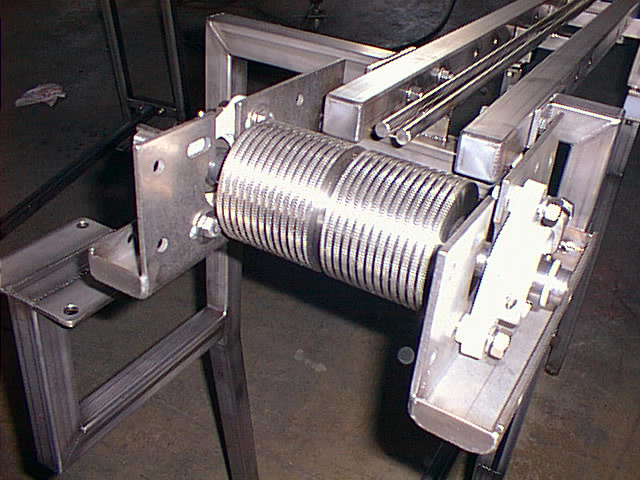

Stainless Steel Drive Pulley

Spaced bearings and grease troughs
